Байтел
V-SOL В наличии

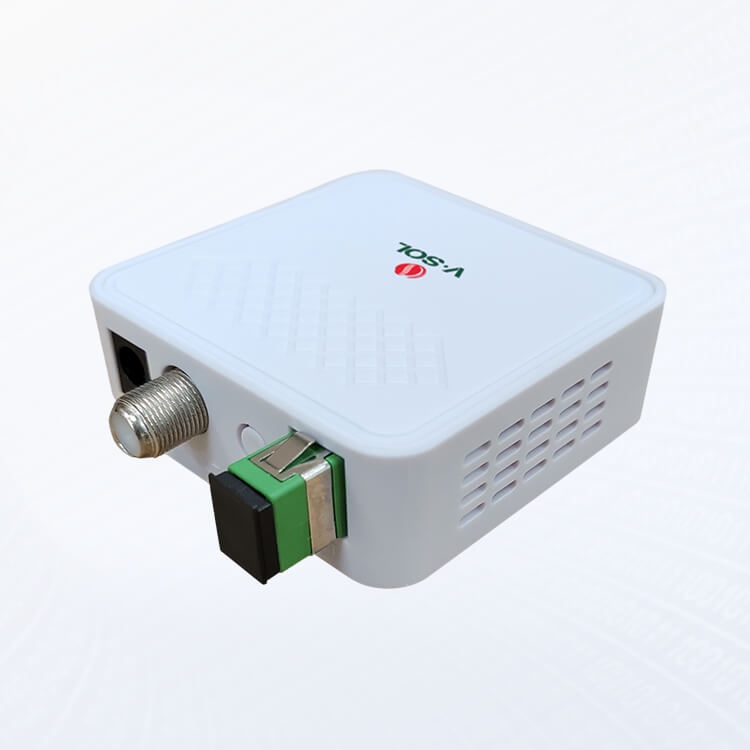

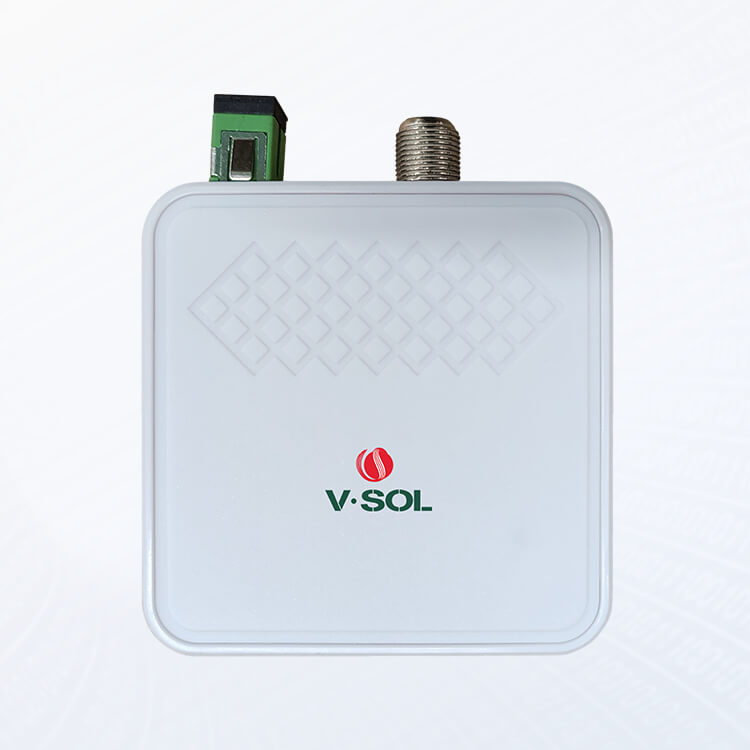

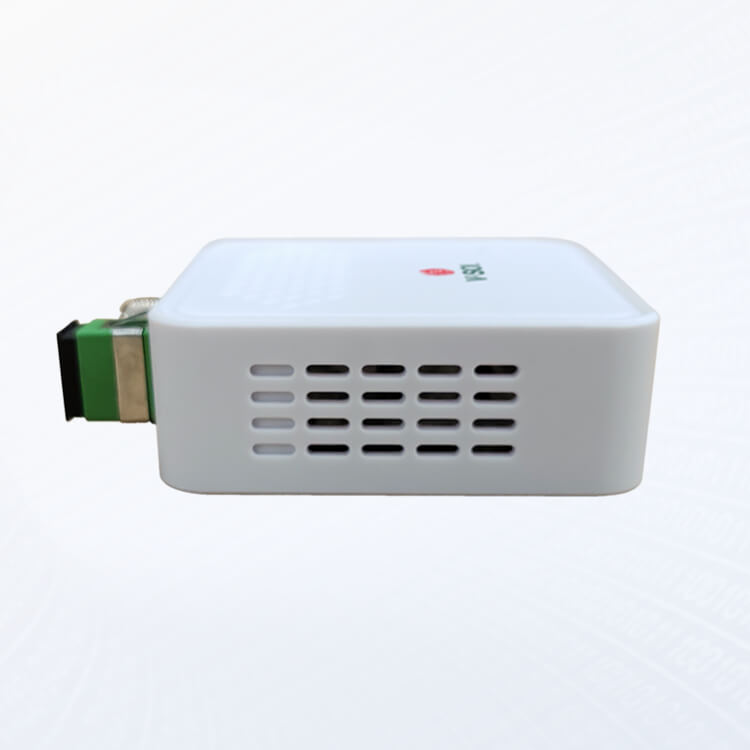

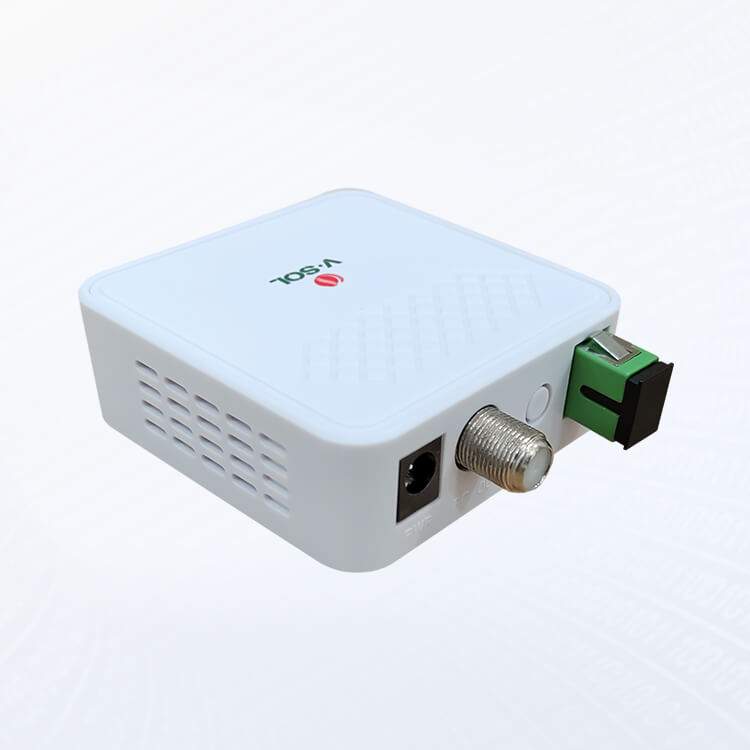

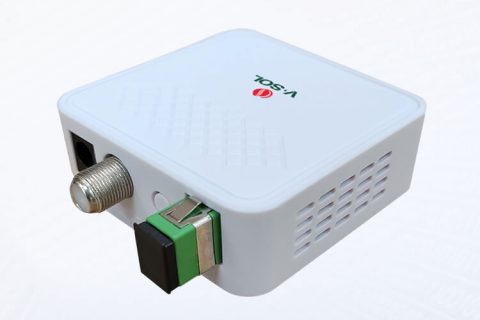

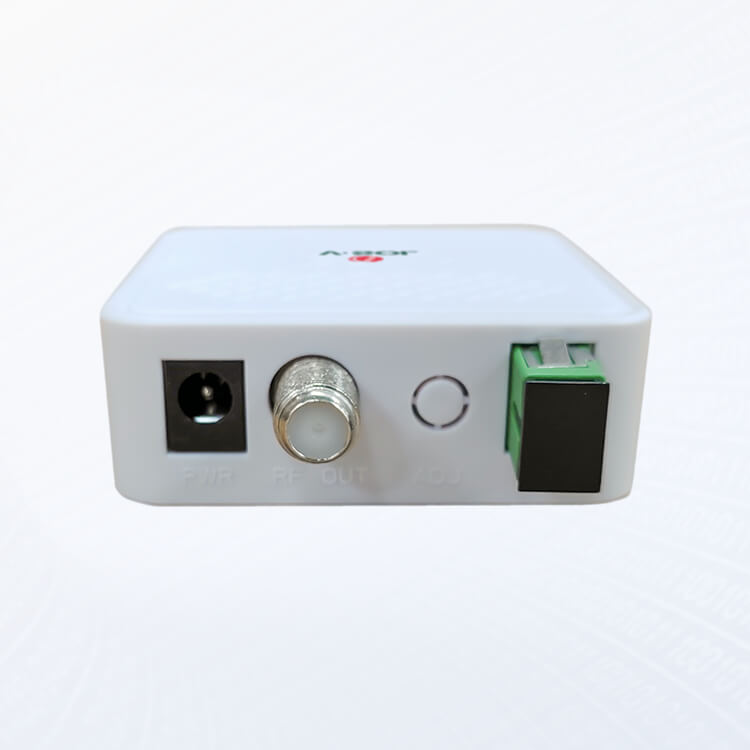

V8601H-1

Основные преимущества модели CATV-RECEIVER-V8601H1

PON-порты—
Стандарт—
Uplink—
НаличиеВ наличии
По запросу
✓

Гарантия 12 месяцев

✓

Доставка по всей России

✓

Техническая поддержка 24/7

✓

Сертифицированное оборудование

 Product introduction

V8601H-1 FTTH Optical Receiver has high performance, lower receiver optical power and lower cost for CATV operators providing high quality and excellent FTTH network solution.

 Technical parameters
Description value Unit Conditions / Notes
Wavelength 1100～1600 nm
Optical Power Input Range -20～-1 dBm Recommend -18 to -1
Optical Input Return Loss ≥45 dB
Bandwidth 47～1003 MHz
Flatness ±0.75 dB 47～1000MHz，At 25 ℃
Slope 0~1.0 dB 47～1000MHz，At 25 ℃
Temperature Stability ±1.0 dB In the operating tem range (-25 ~ +65 ℃)
Output Level 78 dBuV -15dBm input optical power, per channel modulation  4.0%, in the 860MHz point test, at 25 ℃
Impedance 75 Ohm
Return Loss（47～1000MHz） ≥14 dB At 25 ℃
MER ≥34 dB -15~-4dBm input optical power
Power < 0.8 W
Operating Temperature -25～65 ℃
Storage Temperature -40～70 ℃
Storage Humidity ≤95 ％ Non- condensation
Optical Connector Type SC/APC FC/ST Optional
Power interface DC12V/1A External adapter
RF Output Connector F connector 2 out optional
Dimension 74×64×27 mm
Net weight 0.102 kg
Gross weight 0.116 kg
