Байтел
EPON В наличии

V1600D4

Основные преимущества модели 4-PORT-EPON-OLT-V1600D4

PON-порты—
СтандартEPON
Uplink4.0
НаличиеВ наличии
По запросу
✓

Гарантия 12 месяцев

✓

Доставка по всей России

✓

Техническая поддержка 24/7

✓

Сертифицированное оборудование

   Product introduction

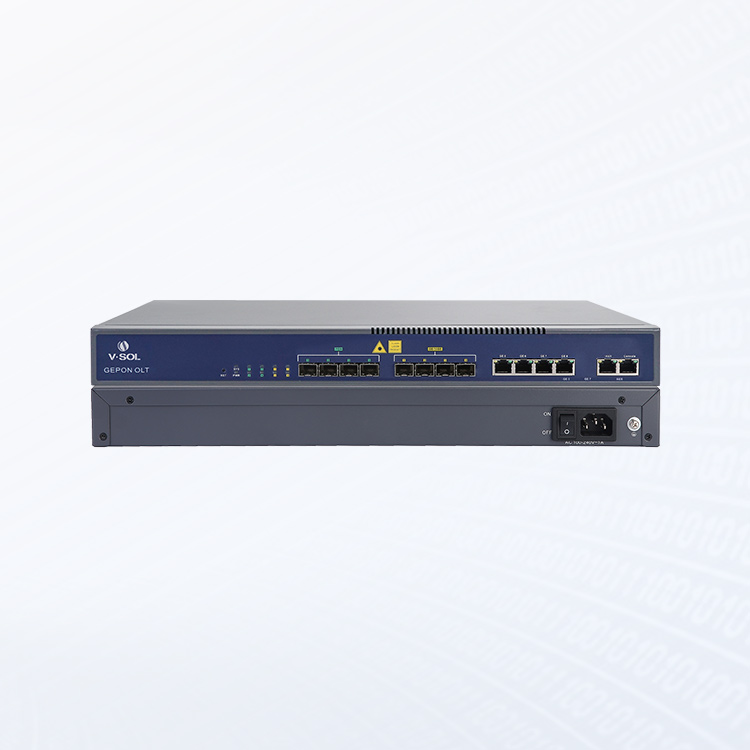

V-SOL V1600D4 is a 1U height 19 inch rack mount product. The features of the OLT are small, convenient, flexible, easy to deploy and high performance. It is appropriate to be deployed in compact room environment. The OLT can be used for “Triple-Play”, VPN, IP Camera, Enterprise LAN and Internet service provider applications.
V1600D4 provides 4GE(copper) and 4*SFP/SFP+ slots independent interface for uplink, and 4*EPON OLT ports for downlink. It can support overall 256 ONU’s with 64 ONU’s per PON port.




  Technical Specifications
Item V1600D4
Chassis Rack 1U 19 inch standard box
Uplink Port QTY 8
RJ45 4
SFP/SFP+ 4
EPON Port QTY 4
Physical Interface SFP Slots
Max splitting ratio 1:64
Supported PON module level PX20, PX20+, PX20++, PX20+++
Backplane Bandwidth (Gbps) 128
Port Forwarding Rate(Mpps) 71.424
Dimension (LxWxH) 442mm*200mm*43.6mm
Weight 3.2kg
Power Supply AC 100~240 V, 50/60 Hz
Power Consumption 30W
Operating Environment Working Temperature -20~+60°C
Storage Temperature -40~+70°C
Relative Humidity 5~95% (non-condensing)
